Technology Stack
| Component | Technology | Infrastructure | Purpose |
|---|---|---|---|
| Ingestion API | Python 3.11 / FastAPI | Cloud Run (Service) | Gateway for telemetry and orders, JSON validation, Pub/Sub publishing |
| Message Bus | Google Pub/Sub | Pub/Sub / Emulator | Asynchronous event distribution with dead letter queue |
| State Manager | Java 21 / Spring Boot 4 | Cloud Run (Service) | State consistency, Firestore transactions, snapshot generation |
| Optimizer | Python 3.11 / OR-Tools | Cloud Run (Job) | Vehicle Routing Problem solver with pickup-delivery constraints |
| Database | Firestore Native | Firestore / Emulator | Hot storage for real-time state (drones, orders, missions) |
| Frontend | TypeScript / SolidJS | Cloud Run (Service) | Real-time map visualization (WebSocket) |
| Analytics | BigQuery | BigQuery | Historical data warehouse (work in progress) |
Shared Model Layer

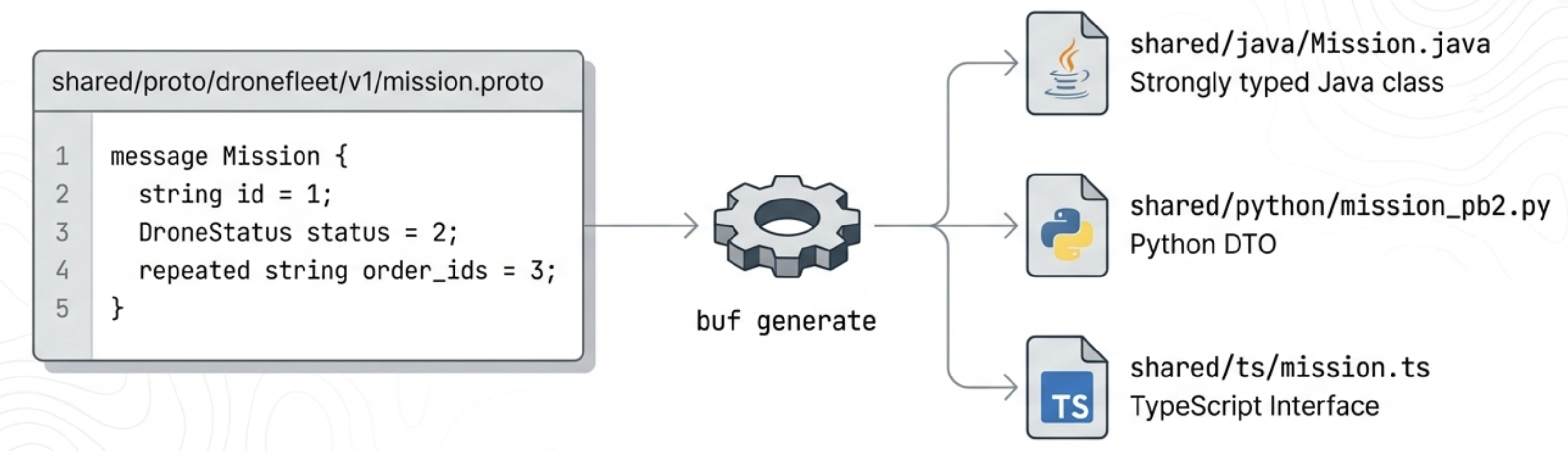

All components share a single source of truth for data models via Protocol Buffers:
- Definitions in
shared/proto/dronefleet/v1/*.proto - Generated code for Java, Python, TypeScript
- Validation via Buf (linting, breaking change detection)
- Automated synchronization enforced by pre-commit hooks and CI/CD
