Architecture

The system implements a polyglot microservices architecture with hexagonal pattern for infrastructure independence:

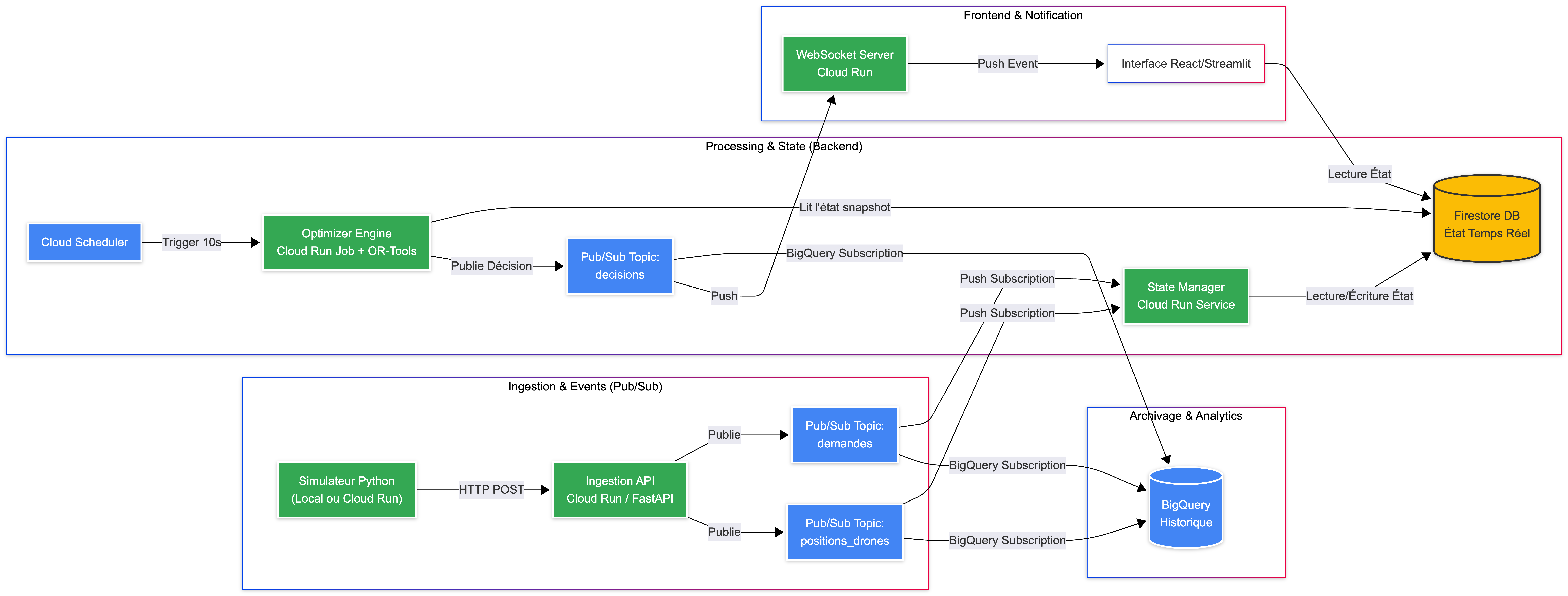

Architecture Diagram

Architectural Principles

  • Event-Driven: Pub/Sub message bus decouples components
  • Polyglot: Python (FastAPI), Java (Spring Boot), TypeScript (SolidJS) for optimal tool-task matching
  • Hexagonal Architecture: Domain logic isolated from infrastructure via ports and adapters
  • Cloud-Native: Designed for Google Cloud Platform with local emulation support
  • Infrastructure as Code: Complete Terraform definitions for reproducible deployments

Environments

LOCAL → DEV → PROD

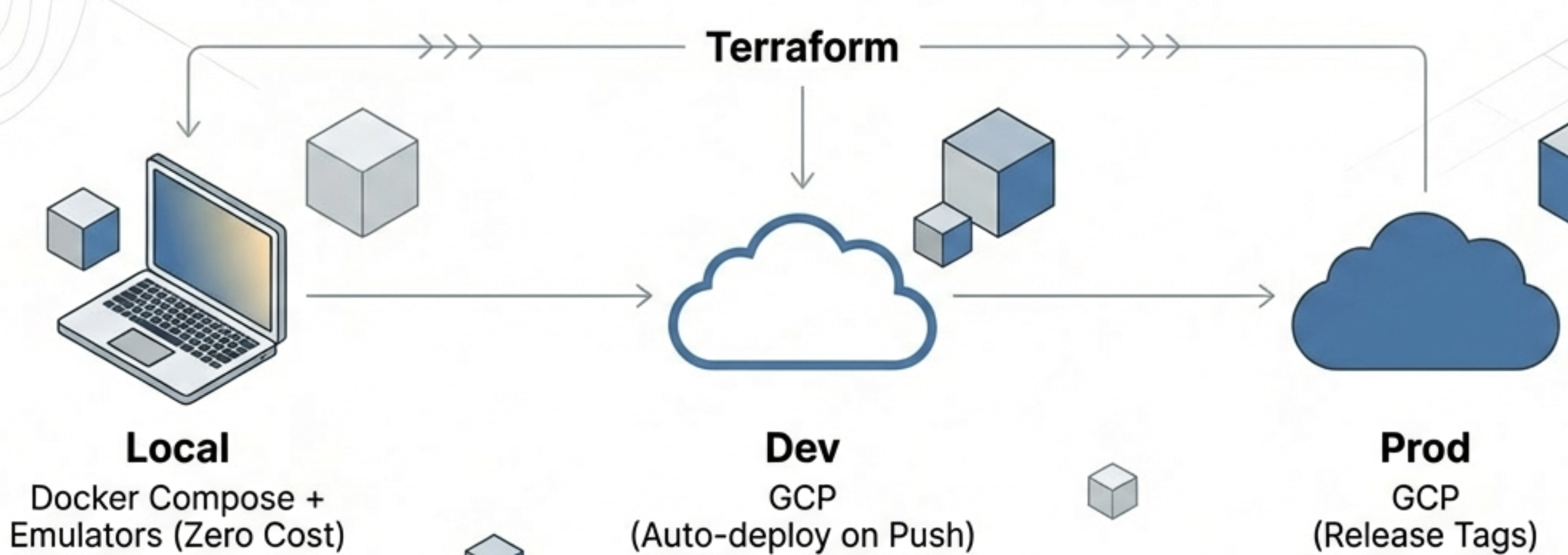

Env Diagram

  • LOCAL: Docker Compose with Pub/Sub and Firestore emulators (zero GCP cost)
  • DEV: Full GCP services with automatic deployment on push to main branch
  • PROD: Production environment with manual deployment via release tags
