Data Flow

Telemetry and Order Ingestion Flow

┌─────────────┐
│  Simulator  │ (Generates drone telemetry + delivery orders)
└──────┬──────┘
       │ HTTP POST
       v
┌─────────────────┐
│ Ingestion API   │ (FastAPI - Validation with Pydantic)
│  Cloud Run      │
└────────┬────────┘
         │ Pub/Sub Publish
         ├──────────────────┬──────────────────┐
         v                  v                  v
   [telemetry]        [orders]           [decisions]
         │                  │                  │
         │                  │                  │
         v                  v                  v
┌────────────────────────────────────────────────┐
│         State Manager (Java/Spring Boot)       │
│  - TelemetryListener   - OrderListener         │
│  - DecisionListener    - REST API              │
└───────────────────┬────────────────────────────┘
                    │ Firestore Transactions
                    v
            ┌───────────────┐
            │  Firestore DB │
            │  Collections: │
            │  - drones     │
            │  - orders     │
            │  - missions   │
            │  - warehouses │
            └───────────────┘

Telemetry Flow Details

1. Simulator generates drone position, battery level, status
2. Ingestion API validates payload against Pydantic schema
3. Pub/Sub delivers message to telemetry topic
4. State Manager TelemetryListener consumes message
5. Firestore Transaction updates drone document with:
6. Timestamp ordering (reject out-of-order messages)
7. Position update (GeoPoint)
8. Battery level update
9. Status transition validation

Order Flow Details

1. Simulator generates delivery request (product type, priority, location)
2. Ingestion API validates order payload
3. Pub/Sub delivers message to orders topic
4. State Manager OrderListener consumes message
5. Firestore Transaction creates/updates order document with:
6. Idempotency guard (prevents overwriting processed orders)
7. Status: PENDING
8. Priority-based deadline calculation

Optimization Cycle Flow

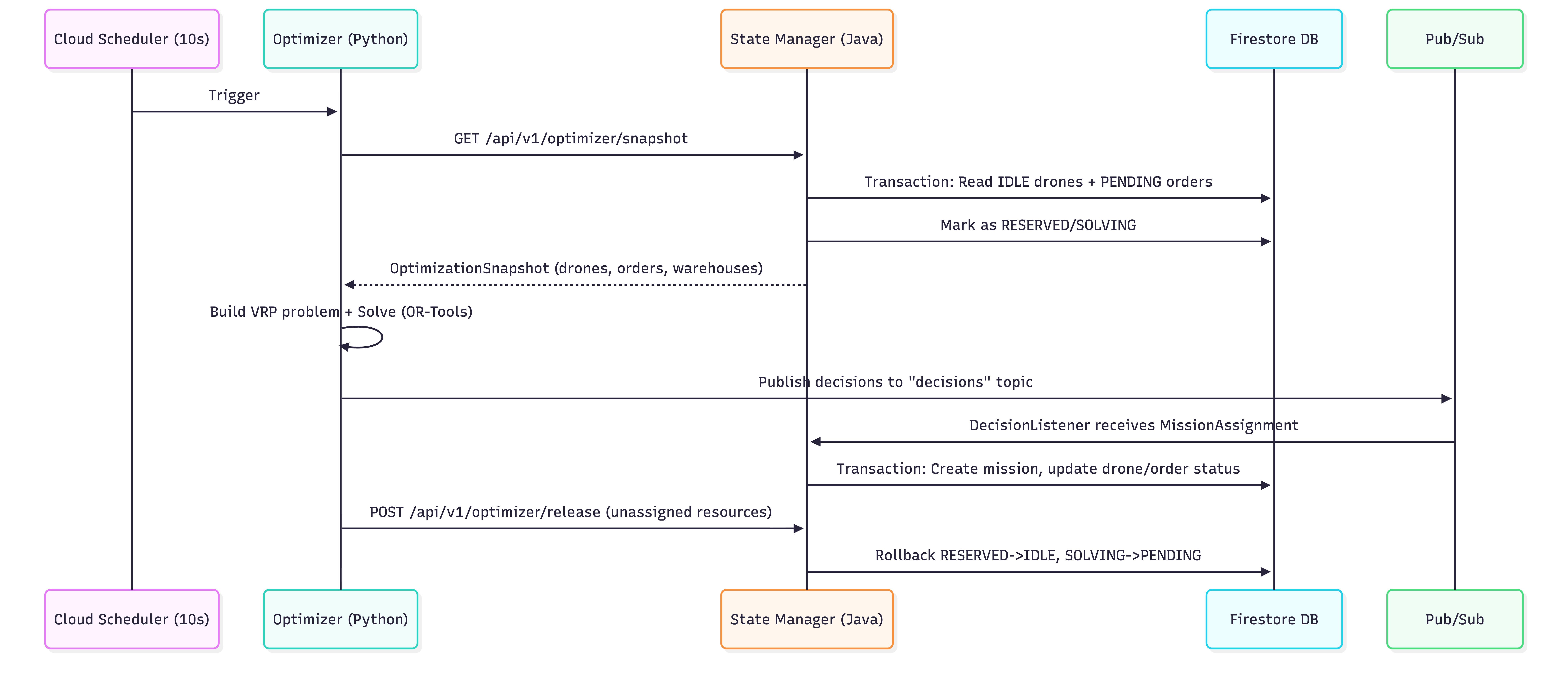

The global logical cycle of the optimization part of the system is represented by :

With more details, the complete flow :

┌──────────────────┐
│ Cloud Scheduler  │ (Triggers every 10 seconds)
└────────┬─────────┘
         │ HTTP POST (invoke Cloud Run Job)
         v
┌─────────────────────────────────────────────────┐
│          Path Optimizer (Python/OR-Tools)       │
│                                                 │
│  1. GET /api/v1/optimizer/snapshot              │
│     ├─ Fetch IDLE drones (battery > 20%)       │
│     ├─ Fetch PENDING orders                    │
│     ├─ Fetch warehouses + depot                │
│     └─ Return OptimizationSnapshot             │
│                                                 │
│  2. Build VRP Model (builder.py)                │
│     ├─ Create node graph (depot, pickups,      │
│     │  deliveries)                              │
│     ├─ Compute distance/time matrices          │
│     │  (Haversine)                              │
│     ├─ Map orders to compatible warehouses     │
│     └─ Define time windows per priority        │
│                                                 │
│  3. Solve VRP (solver.py)                       │
│     ├─ Distance dimension (minimize travel)    │
│     ├─ Time dimension (respect deadlines)      │
│     ├─ Battery dimension (consumption model)   │
│     ├─ Pickup-delivery constraints             │
│     └─ Disjunctions (allow dropping infeasible │
│        orders)                                  │
│                                                 │
│  4. Extract Solution (extractor.py)             │
│     ├─ Walk each vehicle route                 │
│     ├─ Classify waypoints (START, PICKUP,      │
│     │  DELIVERY, RETURN)                        │
│     ├─ Compute metrics (battery, duration)     │
│     └─ Build MissionAssignment messages        │
│                                                 │
│  5. Publish Decisions                           │
│     └─ Pub/Sub topic: decisions                │
└─────────────────────────────────────────────────┘
         │
         v
   [decisions] Pub/Sub Topic
         │
         v
┌─────────────────────────────────────────────────┐
│         State Manager - DecisionListener        │
│                                                 │
│  BEGIN Firestore Transaction:                   │
│    1. Read drone (verify IDLE)                  │
│    2. Read all orders (verify PENDING)          │
│    3. Validate via MissionAssignmentPolicy      │
│    4. Create Mission document                   │
│    5. Update drone.status = MOVING              │
│    6. Update orders.status = ASSIGNED           │
│  COMMIT (atomic, all-or-nothing)                │
│                                                 │
│  If validation fails (race condition):          │
│    - Transaction aborted                        │
│    - BusinessRejectionException thrown          │
│    - Affected entities picked up in next cycle  │
└─────────────────────────────────────────────────┘
